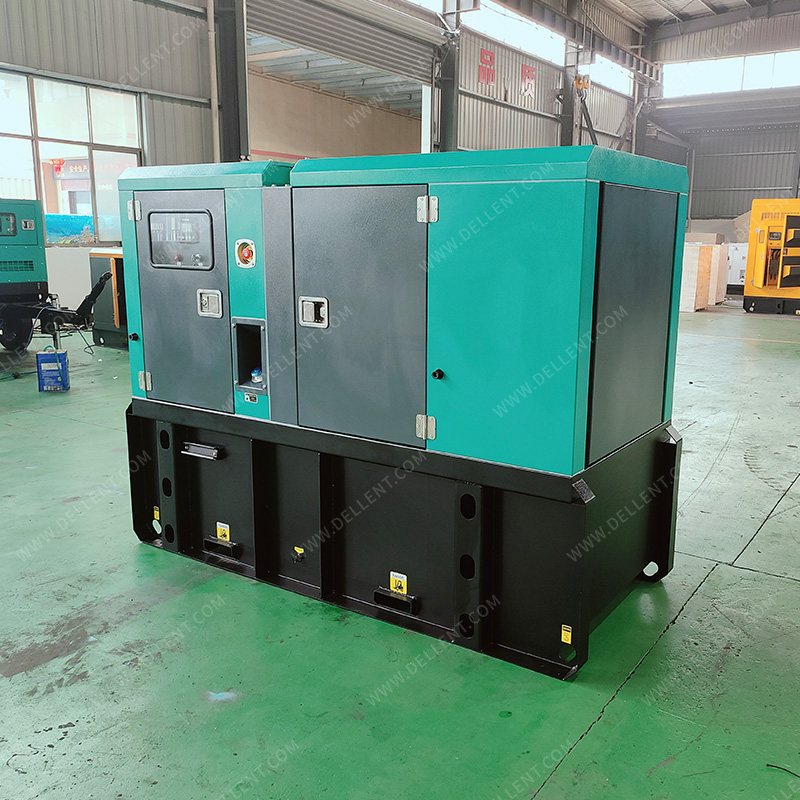

30KW 50Hz SDEC Silent/Soundproof Diesel Generator Set

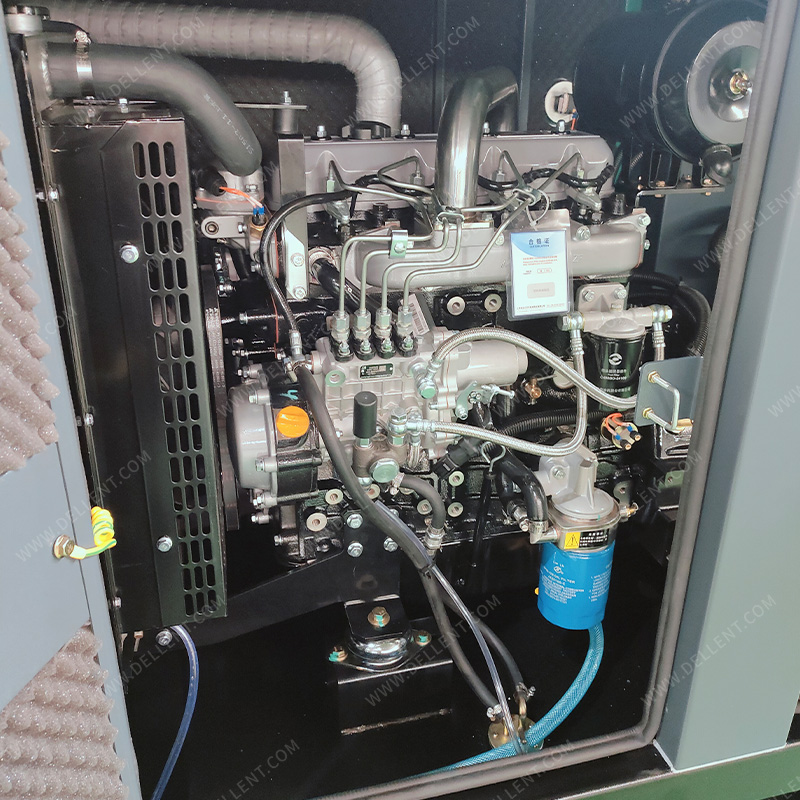

1. Assembly by SDEC brand new engine and brand new single bearing alternator with IP23, class H. Options alternator Brands: Stamford, Leroy Somer, Mecc Alte, CopyStamford, etc.
2. Heavy-duty steel as the base plate with 8 hours operation fuel tank.

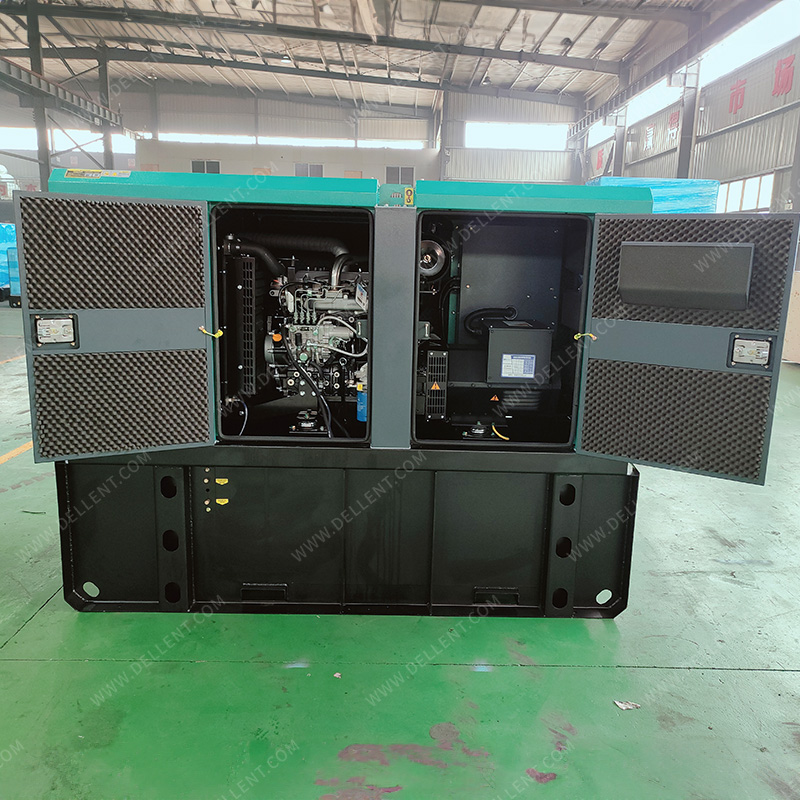

3. The extremely low noise level, the canopy is made of 2mm cold-rolled sheet, filled with 3cm thick flame retardant muffler cotton, complete gen-set with heavy-duty industrial type silencer with flexible bellow and elbow.
4. Vibration damper between engine/alternator and base frame
5. 3-pole circuit breaker.

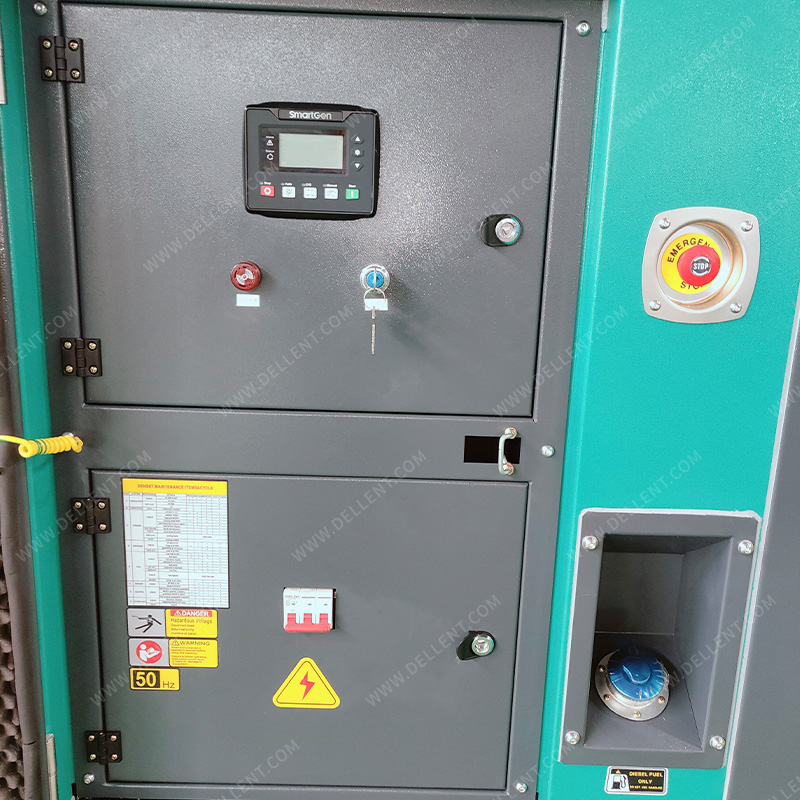

6. Options Controller brands: UK Deepsea, Czech ComAp, CN Smartgen etc.
7. Full range protect function and alarm shutdown feature
8. Comply with ISO8528 national standard and ISO9001 quality standard.

PRODUCT DETAILS

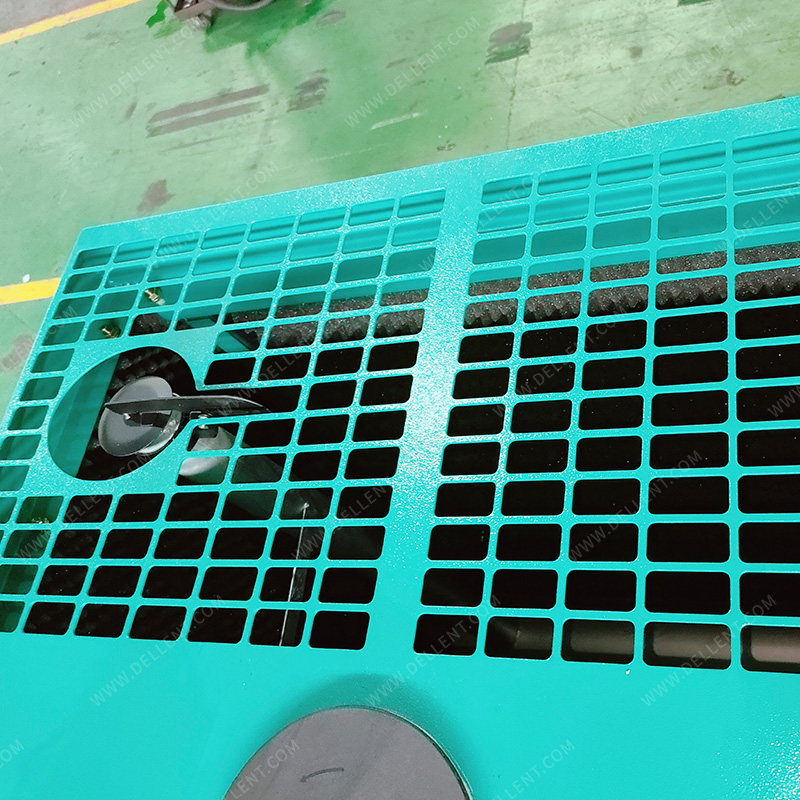

✔ Silent canopy: The silent canopy uses national standard 2MM cold-rolled plate, and the thickness after spraying can reach 2.2-2.3MM. Most other manufacturers use 1.8 hot-rolled plate. The cold-rolled plate has better ductility than hot-rolled plate and is more expensive.

✔ Door locks, hinges, Standard Parts, Inlet and outlet oil line: made of 304 stainless steel.

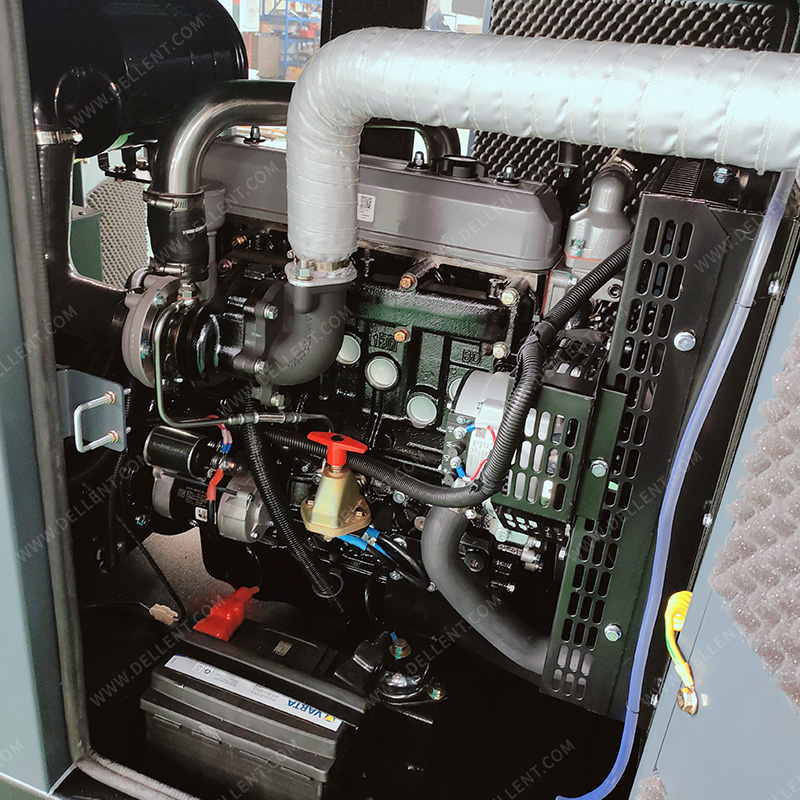

✔ Exhaust Pipe: The interior is wrapped with fiberglass and the exterior is sprayed with silver high-temperature paint, which can withstand temperatures of nearly 600 degrees without peeling off the paint.

✔ Exhaust pipe insulation cotton: Insulation tape + silicone cloth.

✔ Sponge mat: Using Fuqing Zhenzhong wave cotton (F758)

✔ Shot peening: More than other factories a shot blasting process, sheet metal welding is completed, through the shot blasting machine sand blasting and then plastic spraying, plastic spray powder adhesion is better.

✔ Plastic spray powder: Zhangzhou WanKun outdoor powder, color mixing accuracy.

✔ Water Temperature/Oil Pressure/Fuel Level Sensor, Fuel Level Gauge: All are KUS Dongguan Zhengyang

✔ Battery: Standard Varta

ENGINE Options

Alternator Options

Control Module Options

Battery Charger

breaker

DELLENT Factory Workshop

faq

Q: What’s your warranty?
A: All our products we offer one year warranty or 1000 hours.

Q: What’s your delivery time?
A: Standard product 20 days – 35 days. Customized product 40 days.

Q: Can we add our logo to products?
A: Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q: Can we customize the product?
A: We have a very experienced technical team, we can customize any product according to your requirements, such as synchronization system, wet exhaust system, ultra-silent system, etc.

Q: What certifications are for your gen sets?
A: ISO9001-2008, ISO14001-2004, CE, SASO, SONCAP, RETIE, etc.

Custom Diesel Generators for Any Application

At DELLENT, we have years of experience designing, building, and selling all types and sizes of diesel generators. Our generators are currently in use around the world in a variety of unique applications.
